| BFN FLARE NUT WRENCH |
| |

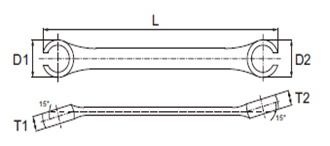

| Model No. | Size | Model No. | Size | D1 | D2 | T1 | T2 | L |
| 300460101011 | 8 mm x 9 mm | | | 17.8 | 19.8 | 6.8 | 8.3 | 130 |
| 300460101021 | 8 mm x 10 mm | 300460101022 | 3/8" x 5/16" | 17.8 | 19.8 | 6.8 | 8.3 | 130 |
| 300460101031 | 10 mm x 11 mm | 300460101032 | 3/8" x 7/16" | 19.8 | 21.8 | 8.3 | 8.8 | 150 |
| 300460101041 | 10 mm x 12 mm | | | 19.8 | 21.8 | 8.3 | 8.8 | 150 |
| 300460101051 | 11 mm x 13 mm | 300460101052 | 7/16" x 1/2" | 21.8 | 25.8 | 8.8 | 10.8 | 165 |
| 300460101061 | 12 mm x 13 mm | | | 21.8 | 25.8 | 8.8 | 10.8 | 165 |
| 300460101071 | 12 mm x 14 mm | | | 23.9 | 27.8 | 9.8 | 11.8 | 175 |
| 300460101081 | 13 mm x 14 mm | 300460101082 | 1/2" x 9/16" | 23.9 | 27.8 | 9.8 | 11.8 | 175 |
| 300460101091 | 14 mm x 17 mm | 300460101092 | 9/16" x 5/8" | 27.8 | 31.8 | 11.8 | 12.8 | 190 |
| 300460101101 | 16 mm x 17 mm | | | 27.8 | 31.8 | 11.8 | 12.8 | 190 |
| 300460101111 | 17mm x 19 mm | 300460101112 | 11/16" x 3/4" | 31.8 | 34.8 | 12.8 | 13.8 | 210 |
| 300460101121 | 18 mm x 19 mm | | | 31.8 | 34.8 | 12.8 | 13.8 | 210 |
| 300460101131 | 19 mm x 22 mm | 300460101132 | 3/4" x 7/8" | 34.8 | 40.8 | 13.8 | 15.8 | 230 |
| 300460101141 | 20 mm x 22 mm | | | 34.8 | 40.8 | 13.8 | 15.8 | 230 |
| 300460101151 | 21 mm x 23 mm | | | 40.8 | 44.8 | 15.8 | 16.8 | 250 |
| 300460101161 | 22 mm x 24 mm | 300460101162 | 7/8" x 1" | 40.8 | 44.8 | 15.8 | 16.8 | 250 |
| 300460101171 | 24 mm x 27 mm | | | 44.8 | 47.8 | 16.8 | 17.8 | 270 |
| 300460101181 | 25 mm x 28 mm | 300460101182 | 1" x 1-1/8" | 44.8 | 47.8 | 16.8 | 17.8 | 270 |
| 300460101191 | 26 mm x 29 mm | | | 44.8 | 47.8 | 16.8 | 17.8 | 270 |
| 300460101201 | 30 mm x 32 mm | 300460101202 | 1-1/8" x 1/1/4" | 49.8 | 51.8 | 20.8 | 22.8 | 290 |
