COMBINATION RATCHET WRENCH
| GM COMBINATION RATCHET WRENCH | ||||||||

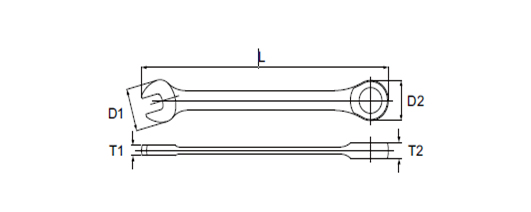

| Model No. | Size | Model No. | Size | D1 | D2 | T1 | T2 | L |
| 300020101051 | 5.5 mm | 17.02 | 17.03 | 4.71 | 6.35 | 140 | ||
| 300020101061 | 6 mm | 300020101062 | 1/4" | 17.02 | 17.03 | 4.71 | 6.35 | 140 |
| 300020101071 | 7 mm | 17.02 | 17.03 | 4.71 | 6.35 | 140 | ||
| 300020101081 | 8 mm | 300020101082 | 5/16" | 17.02 | 17.03 | 4.71 | 6.35 | 140 |
| 300020101091 | 9 mm | 19.75 | 19.2 | 5 | 6.67 | 149 | ||
| 300020101101 | 10 mm | 300020101102 | 3/8" | 21.28 | 20.22 | 4.8 | 6.94 | 158 |
| 300020101111 | 11 mm | 300020101112 | 7/16" | 24.18 | 22.72 | 5.31 | 7.24 | 165 |
| 300020101121 | 12 mm | 26.47 | 23.6 | 5.58 | 7.54 | 171 | ||
| 300020101131 | 13 mm | 300020101132 | 1/2" | 28 | 25.29 | 5.74 | 8.07 | 177 |
| 300020101141 | 14 mm | 300020101142 | 9/16" | 30.81 | 27.3 | 5.85 | 8.48 | 190 |
| 300020101151 | 15 mm | 32.12 | 28.64 | 6.23 | 8.95 | 198 | ||
| 300020101161 | 16 mm | 300020101162 | 5/8" | 34.32 | 30.78 | 6.12 | 9.47 | 208 |
| 300020101171 | 17 mm | 300020101172 | 11/16" | 36.18 | 32.39 | 6.8 | 9.95 | 224 |
| 300020101181 | 18 mm | 38.45 | 33.48 | 7.16 | 10.39 | 235 | ||
| 300020101191 | 19 mm | 300020101192 | 3/4" | 40.73 | 35.41 | 7.79 | 10.97 | 247 |
| 300020101201 | 20 mm | 45.8 | 40.88 | 9.42 | 12.97 | 288 | ||
| 300020101211 | 21 mm | 300020101212 | 7/8" | 45.8 | 40.88 | 9.42 | 12.97 | 288 |
| 300020101221 | 22 mm | 300020101222 | 13/16" | 46.05 | 40.62 | 8.94 | 12.96 | 288 |
| 300020101231 | 23 mm | 51.97 | 46.04 | 10.42 | 14.47 | 320 | ||
| 300020101241 | 24 mm | 300020101242 | 15/16" | 51.97 | 46.04 | 10.42 | 14.47 | 320 |
| 300020101251 | 25 mm | 300020101252 | 1" | 51.97 | 46.04 | 10.42 | 14.47 | 320 |
| 300020101261 | 26 mm | 51.97 | 46.04 | 10.42 | 14.47 | 320 | ||
| 300020101271 | 27 mm | 300020101272 | 1-1/16" | 56.0 | 52.0 | 10.5 | 15.6 | 359 |
| 300020101281 | 28 mm | 56.0 | 52.0 | 10.5 | 15.6 | 359 | ||
| 300020101291 | 29 mm | 300020101292 | 1-1/8" | 56.0 | 52.0 | 10.5 | 15.6 | 359 |
| 300020101301 | 30 mm | 65.5 | 62.0 | 12.5 | 17.5 | 425 | ||
| 300020101311 | 31 mm | 65.5 | 62.0 | 12.5 | 17.5 | 425 | ||
| 300020101321 | 32 mm | 300020101322 | 1-1/4" | 65.5 | 62.0 | 12.5 | 17.5 | 425 |
| 300020101331 | 33 mm | 65.5 | 62.0 | 12.5 | 17.5 | 425 | ||
| 300020101341 | 34 mm | 79.0 | 65.4 | 14.5 | 18.5 | 485 | ||
| 300020101351 | 35 mm | 79.0 | 65.4 | 14.5 | 18.5 | 485 | ||
| 300020101361 | 36 mm | 79.0 | 65.4 | 14.5 | 18.5 | 485 | ||
| 300020101371 | 37 mm | 79.0 | 65.4 | 14.5 | 18.5 | 485 | ||
300020101381 | 38 mm | 300020101382 | 1/1/2" | 79.0 | 65.4 | 14.5 | 18.5 | 485 |
