| ASLGM AS RATCHET WRENCH |
| |

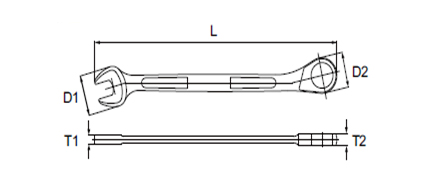

| Model No. | Size | Model No. | Size | D1 | D2 | T1 | T2 | L |
| 300010101061 | 6 mm | 300010101062 | 1/4" | 19.2 | 17.2 | 4.5 | 6.4 | 148 |
| 300010101071 | 7 mm | | | 19.2 | 17.2 | 4.5 | 6.4 | 148 |
| 300010101081 | 8 mm | 300010101082 | 5/16" | 19.2 | 17.2 | 4.5 | 6.4 | 148 |
| 300010101091 | 9 mm | | | 21.3 | 19.1 | 4.8 | 6.7 | 160 |
| 300010101101 | 10 mm | 300010101102 | 3/8" | 23.8 | 20.2 | 5.0 | 7.0 | 167 |
| 300010101111 | 11 mm | 300010101112 | 7/16" | 25.3 | 22.6 | 5.3 | 7.3 | 186 |
| 300010101121 | 12 mm | | | 27.0 | 23.8 | 5.5 | 7.6 | 196 |
| 300010101131 | 13 mm | 300010101132 | 1/2" | 29.6 | 25.4 | 6.2 | 8.1 | 205 |
| 300010101141 | 14 mm | 300010101142 | 9/16" | 31.6 | 27.6 | 6.4 | 8.5 | 223 |
| 300010101151 | 15 mm | | | 33.2 | 28.8 | 6.8 | 9.0 | 233 |
| 300010101161 | 16 mm | 300010101162 | 5/8" | 35.6 | 30.4 | 7.3 | 9.5 | 243 |
| 300010101171 | 17 mm | 300010101172 | 11/16" | 37.8 | 32.4 | 7.8 | 10.0 | 262 |
| 300010101181 | 18 mm | | | 39.6 | 33.4 | 8.4 | 10.5 | 272 |
| 300010101191 | 19 mm | 300010101192 | 3/4" | 41.6 | 35.0 | 8.7 | 11.0 | 281 |
| 300010101201 | 20 mm | | | 41.6 | 35.0 | 8.7 | 11.0 | 281 |
| 300010101211 | 21 mm | 300010101212 | 7/8" | 45.6 | 40.6 | 9.8 | 13.0 | 319 |
| 300010101221 | 22 mm | 300010101222 | 13/16" | 45.6 | 40.6 | 9.8 | 13.0 | 319 |
| 300010101231 | 23 mm | | | 52.0 | 46.4 | 10.8 | 14.5 | 339 |
| 300010101241 | 24 mm | 300010101242 | 15/16" | 52.0 | 46.4 | 10.8 | 14.5 | 339 |
| 300010101251 | 25 mm | 300010101252 | 1" | 52.0 | 46.4 | 10.8 | 14.5 | 339 |
| 300010101261 | 26 mm | | | 52.0 | 46.4 | 10.8 | 14.5 | 339 |
| |
