| FGM FLEX RATCHET WRENCH |
| |

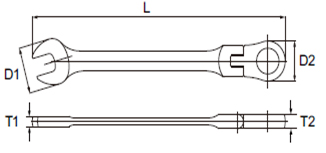

| Model No. | Size | Model No. | Size | D1 | D2 | T1 | T2 | L |
| 300090101051 | 5.5 mm | | | 16.2 | 18.2 | 4.4 | 6.4 | 140 |
| 300090101061 | 6 mm | 300090101062 | 1/4" | 16.2 | 18.2 | 4.4 | 6.4 | 140 |
| 300090101071 | 7 mm | | | 16.2 | 18.2 | 4.4 | 6.4 | 140 |
| 300090101081 | 8 mm | 300090101082 | 5/16" | 16.2 | 18.2 | 4.4 | 6.4 | 140 |
| 300090101091 | 9 mm | | | 18.3 | 18.2 | 4.6 | 6.7 | 150 |
| 300090101101 | 10 mm | 300090101102 | 3/8" | 20.3 | 21.7 | 5.2 | 7.0 | 160 |
| 300090101111 | 11 mm | 300090101112 | 7/16" | 22.4 | 21.7 | 5.6 | 7.3 | 165 |
| 300090101121 | 12 mm | | | 24.5 | 24.8 | 5.8 | 7.6 | 170 |
| 300090101131 | 13 mm | 300090101132 | 1/2" | 26.6 | 24.8 | 6.6 | 8.1 | 178 |
| 300090101141 | 14 mm | 300090101142 | 9/16" | 28.7 | 28.1 | 6.8 | 8.5 | 190 |
| 300090101151 | 15 mm | | | 30.6 | 28.1 | 7.3 | 9.0 | 200 |
| 300090101161 | 16 mm | 300090101162 | 5/8" | 32.8 | 31.0 | 7.6 | 9.5 | 208 |
| 300090101171 | 17 mm | 300090101172 | 11/16" | 34.8 | 31.0 | 8.1 | 10.0 | 225 |
| 300090101181 | 18 mm | | | 36.9 | 33.9 | 8.5 | 10.5 | 237 |
| 300090101191 | 19 mm | 300090101192 | 3/4" | 39.2 | 33.9 | 9.0 | 11.0 | 248 |
| 300090101201 | 20 mm | | | 39.2 | 33.9 | 9.0 | 11.0 | 248 |
| 300090101211 | 21 mm | 300090101212 | 7/8" | 46.5 | 38.8 | 9.5 | 13.0 | 288 |
| 300090101221 | 22 mm | 300090101222 | 13/16" | 46.5 | 38.8 | 9.5 | 13.0 | 288 |
| 300090101231 | 23 mm | | | 51.9 | 45.2 | 10.5 | 14.5 | 322 |
| 300090101241 | 24 mm | 300090101242 | 15/16" | 51.9 | 45.2 | 10.5 | 14.5 | 322 |
| 300090101251 | 25 mm | 300090101252 | 1" | 51.9 | 45.2 | 10.5 | 14.5 | 322 |
| 300090101261 | 26 mm | | | 51.9 | 45.2 | 10.5 | 14.5 | 322 |
