STUBBY REVERSIBLE RATCHET WRENCH
| RSGM STUBBY REVERSIBLE RATCHET WRENCH | ||||||||

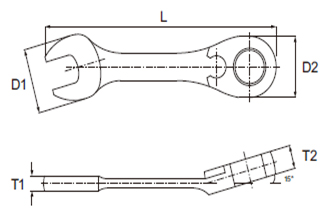

| Model No. | Size | Model No. | Size | D1 | D2 | T1 | T2 | L |
| 300230101051 | 5.5 mm | 18.2 | 18.8 | 5.2 | 6.4 | 91 | ||
| 300230101061 | 6 mm | 300230101062 | 1/4" | 18.2 | 18.8 | 5.2 | 6.4 | 91 |
| 300230101071 | 7 mm | 18.2 | 18.8 | 5.2 | 6.4 | 91 | ||
| 300230101081 | 8 mm | 300230101082 | 5/16" | 18.2 | 18.8 | 5.2 | 6.4 | 91 |
| 300230101091 | 9 mm | 18.2 | 18.8 | 5.2 | 6.7 | 91 | ||
| 300230101101 | 10 mm | 300230101102 | 3/8" | 20.2 | 21 | 5.7 | 7.0 | 94 |
| 300230101111 | 11 mm | 300230101112 | 7/16" | 20.2 | 21 | 5.7 | 7.3 | 94 |
| 300230101121 | 12 mm | 26.5 | 24.8 | 6.8 | 7.6 | 107 | ||
| 300230101131 | 13 mm | 300230101132 | 1/2" | 26.5 | 24.8 | 6.8 | 8.1 | 107 |
| 300230101141 | 14 mm | 300230101142 | 9/16" | 28.6 | 27.2 | 7.2 | 8.5 | 114 |
| 300230101151 | 15 mm | 28.6 | 27.2 | 7.2 | 9.0 | 114 | ||
| 300230101161 | 16 mm | 300230101162 | 5/8" | 34.6 | 32.2 | 8.5 | 9.5 | 128 |
| 300230101171 | 17 mm | 300230101172 | 11/16" | 34.6 | 32.2 | 8.5 | 10.0 | 128 |
| 300230101181 | 18 mm | 39.1 | 34.4 | 9.5 | 10.5 | 138 | ||
| 300230101191 | 19 mm | 300230101192 | 3/4" | 39.1 | 34.4 | 9.5 | 11.0 | 138 |
| 300230101201 | 20 mm | 39.1 | 34.4 | 9.5 | 11.0 | 138 | ||
